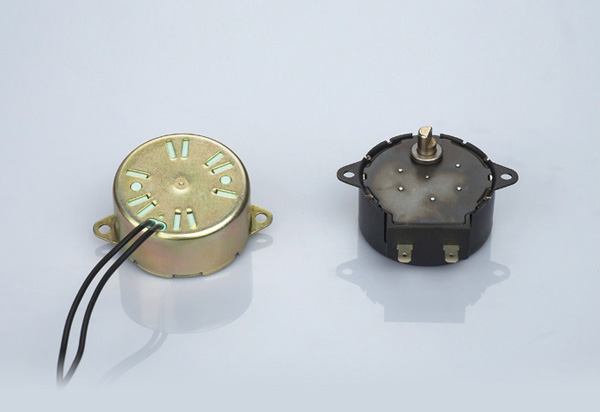

M402 PMSM


 Specification


   Model M402
   Power frequency 50Hz/60Hz
  Operating voltage 110V~120V 220V~240V
   Operating temperature -10~+55 -10~+105 -10~+155
  Input power 4W
Output speed 1~5RPM
Output torque 1200mN.m(At 2RPM 20棩
Insulation resistance 100M
Insulation strength 1500V/1min.
Insulation class E/F/H/N
Temperature rise 60K
Rotation CW/CCW CW or CCW
Applications: can be used in the oven, barbecue fork rotator, barbecue grills, popcorn machines, etc.
