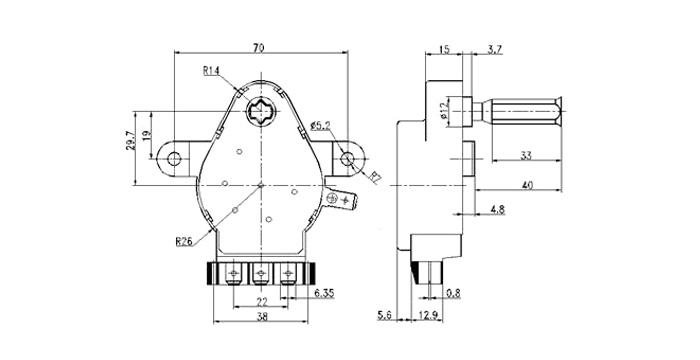

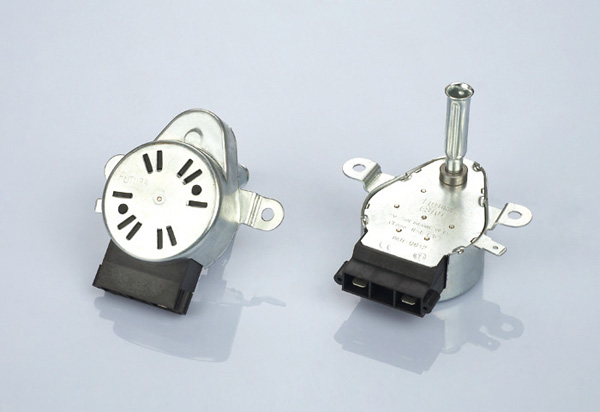

M502 PMSM


 Specification:


   Model M502
   Power frequency 50Hz/60Hz
  Operating voltage 110V~120V 220V~240V
   Operating temperature -10℃~+125℃
  Input power ≤4W
Output speed 1~2r/min
Output torque 1100mN.m(At 2RPM 20℃)
Insulation resistance ≥100MΩ
Insulation strength 1500V/1min.
Insulation class H
Temperature rise ≤60K
Rotation CW/CCW
Applications: can be used in the oven, barbecue fork rotator, barbecue grills, popcorn machines, etc.
